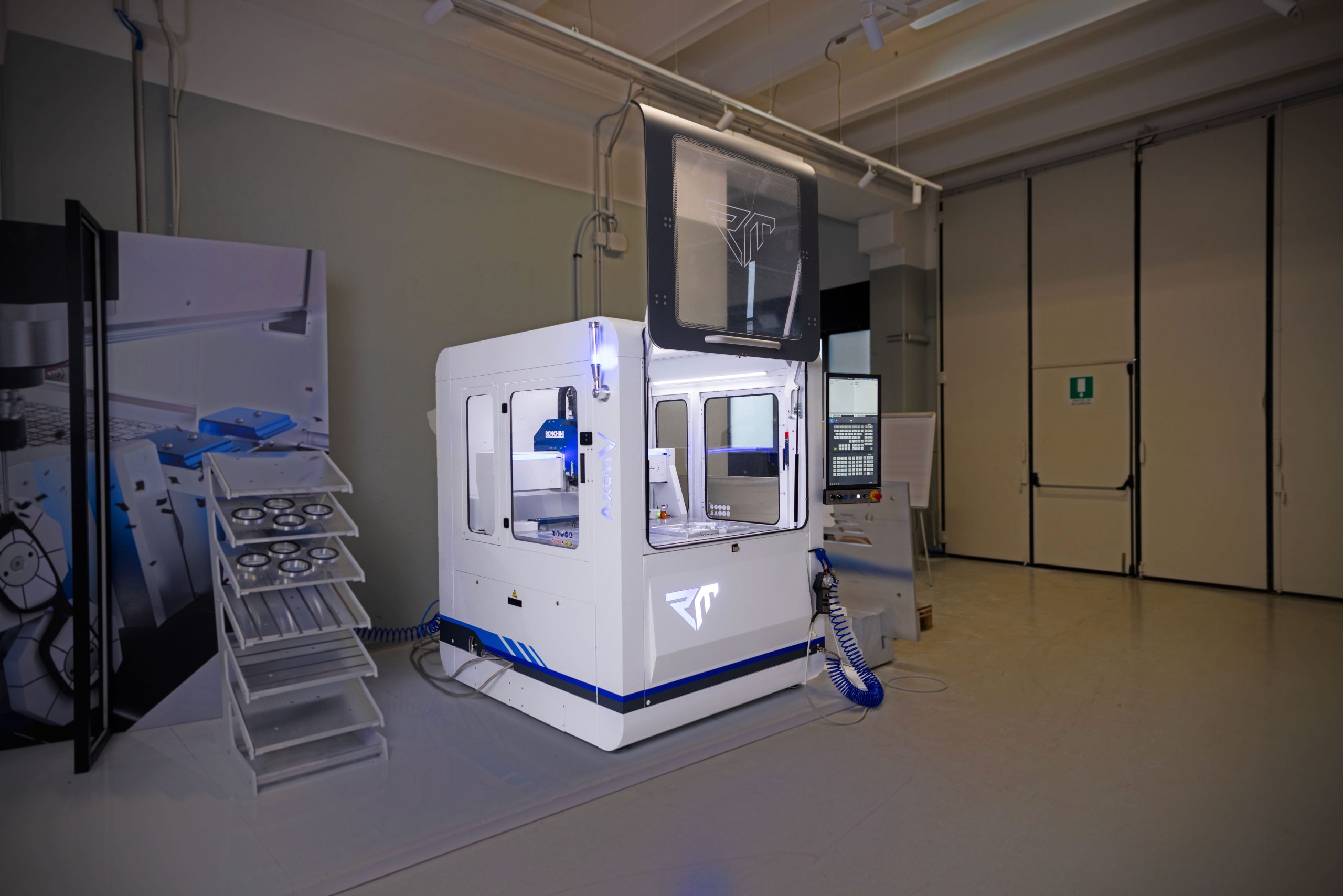

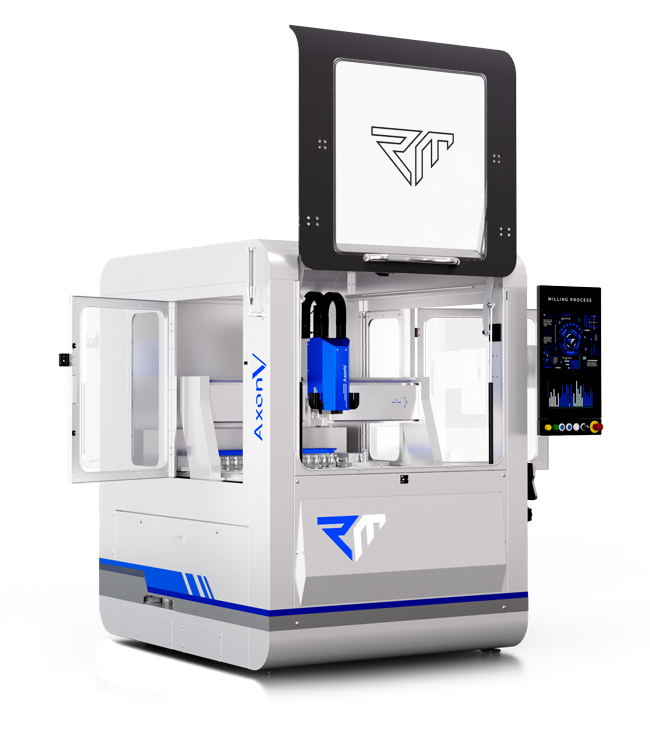

The compact AxonV milling machine is the ideal choice for those looking for a compact CNC milling machine for aluminum and plastics, capable of delivering uncompromising milling performance with high standards of speed, precision, and finish.
Versatile, compact, and ergonomic, AxonV offers a best-in-class ratio between usable working area and overall dimensions, making it the ideal solution for those who need a high-performance CNC milling machine even in limited spaces.
From prototyping to high-volume serial production, it is the benchmark compact CNC milling machine for machining aluminum, brass, engineering plastics, composite and advanced materials.

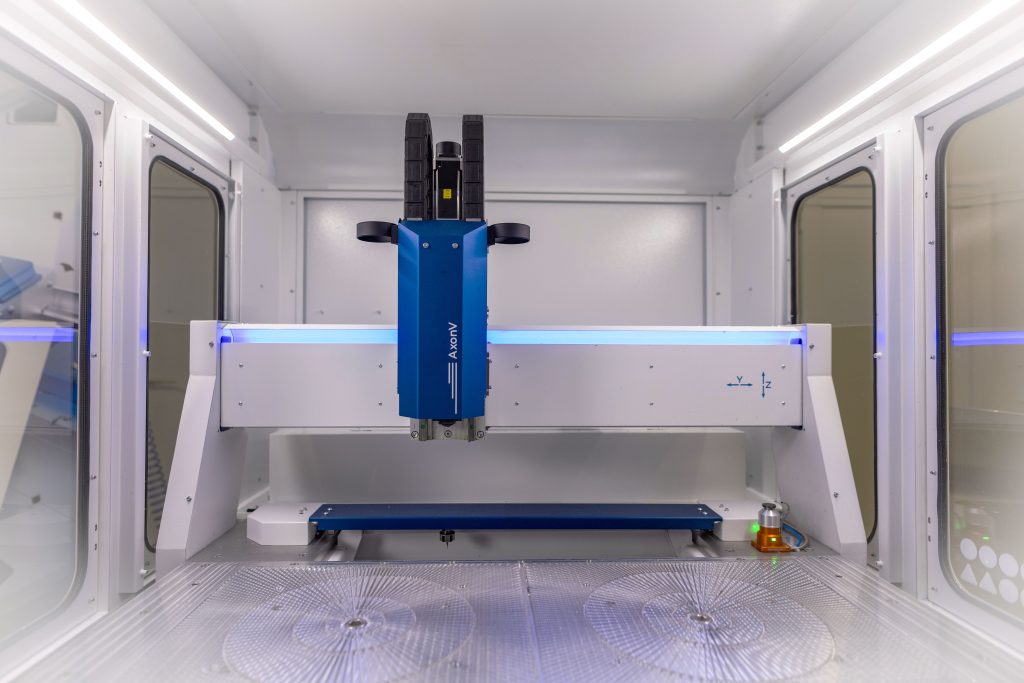

The Z-axis assembly includes, protected by a compact anodized aluminum casing, the electro-spindle, the touch probe and the MQL nozzles, both retractable and operable from the control touch screen, and the chip suction hood, adjustable in height to accommodate different tool lengths.
.

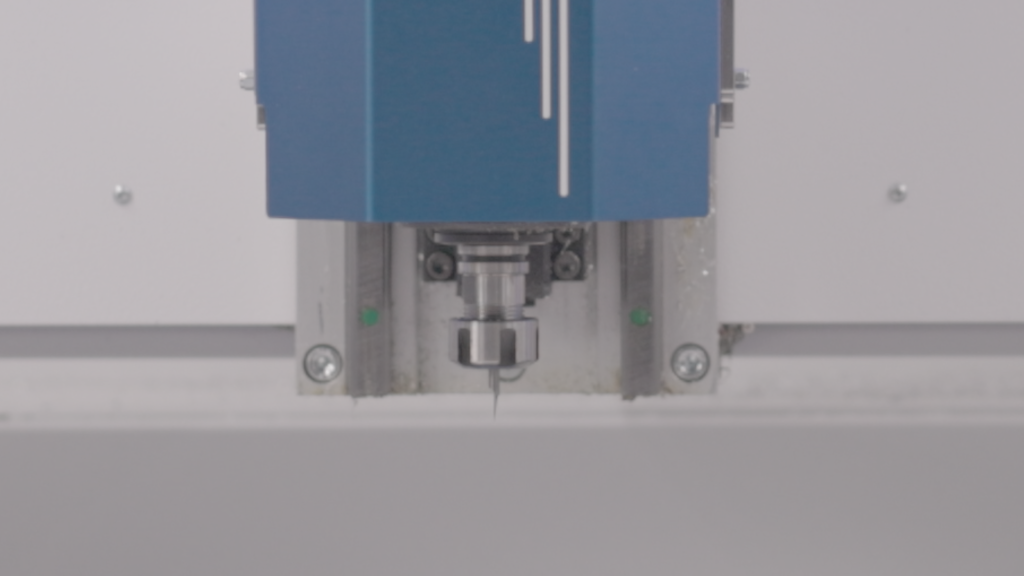

A 4-kilowatt, 40,000-rpm electrospindle provides the power and the ideal speed for high-speed machining. The HSK25 taper coupling ensures maximum performance in terms of rigidity and coupling accuracy.

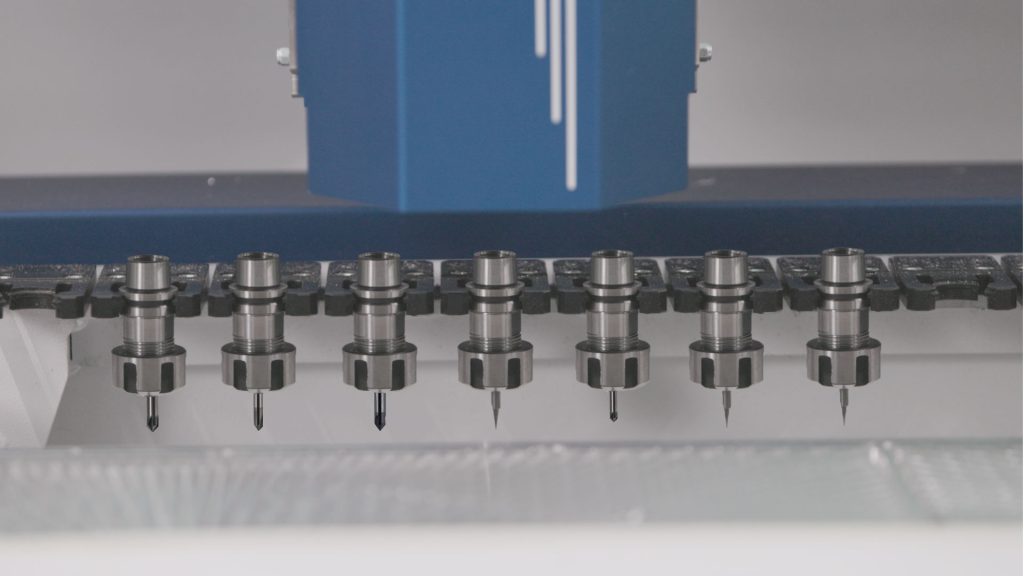

The compact AxonV milling machine is equipped with an automatic tool changer with a capacity of up to 30 positions, maximizing productivity and reducing downtime. The presetting system enables automatic tool measurement and breakage detection, ensuring precise and uninterrupted milling operations.
Il sistema di lubrificazione minimale di questa fresatrice CNC compatta eroga con precisione il refrigerante contenuto in un apposito serbatoio, indirizzandolo direttamente sull’utensile e sul pezzo in lavorazione. Questo sistema consente di ottenere lavorazioni ottimali su alluminio e leghe metalliche leggere, garantendo un raffreddamento e una lubrificazione ottimale. Questa soluzione non richiede la gestione dello smaltimento dei liquidi di raffreddamento e riduce al minimo i rifiuti.
Contained in the Z-axis assembly, the Renishaw probe enables fast part measurement and centering. The probe can be engaged and disengaged by the operator and does not occupy positions in the tool changer. There are several benefits with this system: improved quality control, process control, increased machining efficiency, cost reduction and more.

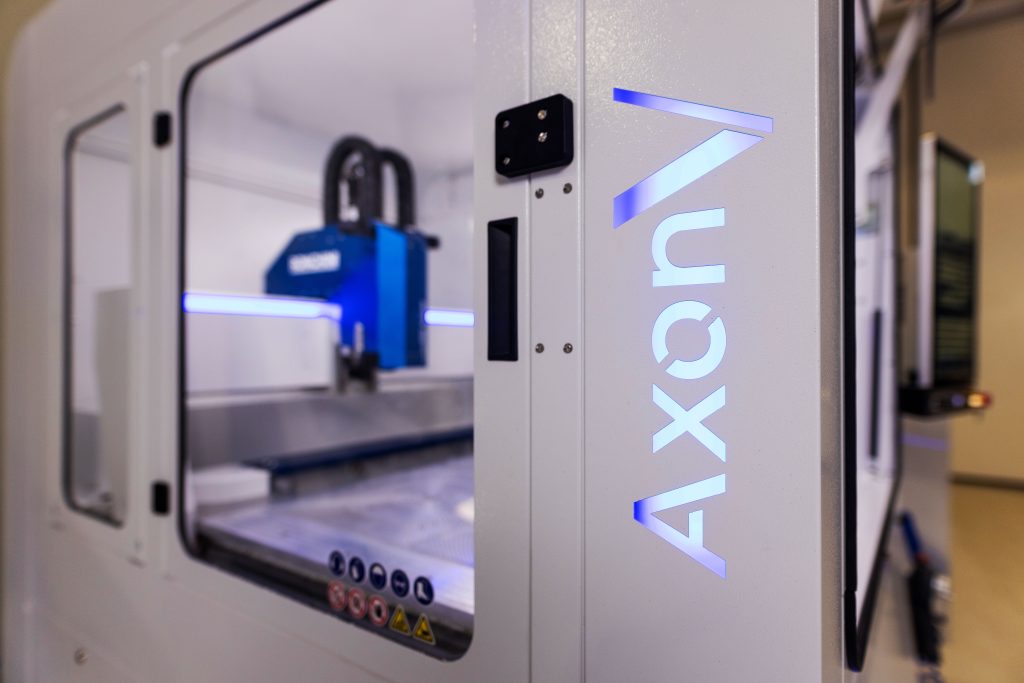

The AxonV compact CNC milling machine is designed with a robust welded steel frame that ensures high structural rigidity and maximum stability during every machining operation. This configuration significantly reduces vibrations, improving surface quality and the precision of the finished part.
The axes are driven by high-precision brushless motors combined with zero-backlash ball screws, ensuring smooth, reliable, and perfectly repeatable movements even in the most complex machining operations.
For applications requiring even higher levels of precision, optical linear scales can be integrated on the axes: an advanced linear measurement system that enables extremely accurate position control, making AxonV a professional compact CNC ideal for high-precision machining.

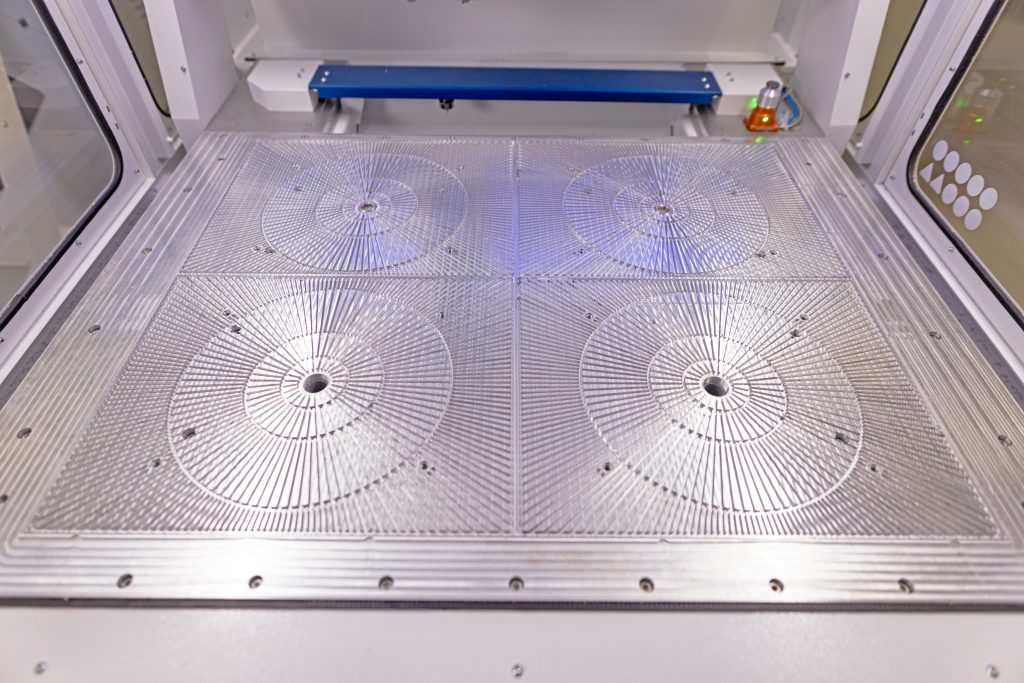

The worktable (dimensions 805 x 1015 mm), made of milled and ground aluminum, ensures a perfectly flat surface. This compact CNC milling machine features a dual clamping system: a vacuum system with zoning capability and a mechanical clamping system using threaded steel inserts for fixture mounting with clamps/vises.
A worktable capable of holding workpieces by means of vacuum pumps can be installed on AxonV. With vacuum clamping, an under tension is created below the clamped workpiece, and the workpiece is pressed against the clamping plate.
Clamps, screws, bolts, and other mechanical components can be installed to secure the workpiece on the milling machine table. In this way, there is no possibility of sudden movement of the workpiece specimen.
The method is suitable for small and medium-sized workpieces, as it requires good accessibility to the workpiece in order to be properly secured.
To a work surface of 805 x 1015 x 200 mm, AxonV combines small overall dimensions to optimize available space (1800 x 1500 x 1980 mm). These are not altered by the opening of the doors either, with the smaller side doors making little impact and the front door sliding upward.
AxonV has a completely user-friendly and state-of-the-art control.

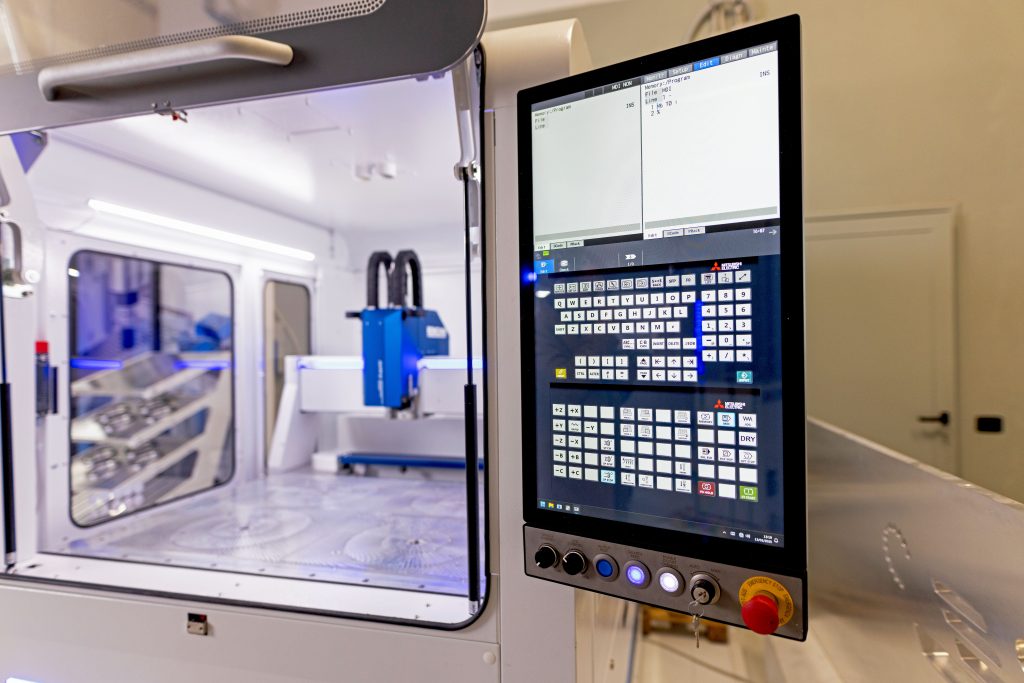

The hardware consists of a swiveling console with a 27-inch touch screen panel. Machine programs, based on the Windows operating system, are adjusted by the Mitsubishi control unit. It provides flexibility of use and high performance for different types of applications and material processing. The HMI puts all the controls of AxonV under control and allows in particular to: import machining files, analyze the design from the 2D/3D preview, and start machining. This is combined with an electronic handwheel to manually control axes and speed.

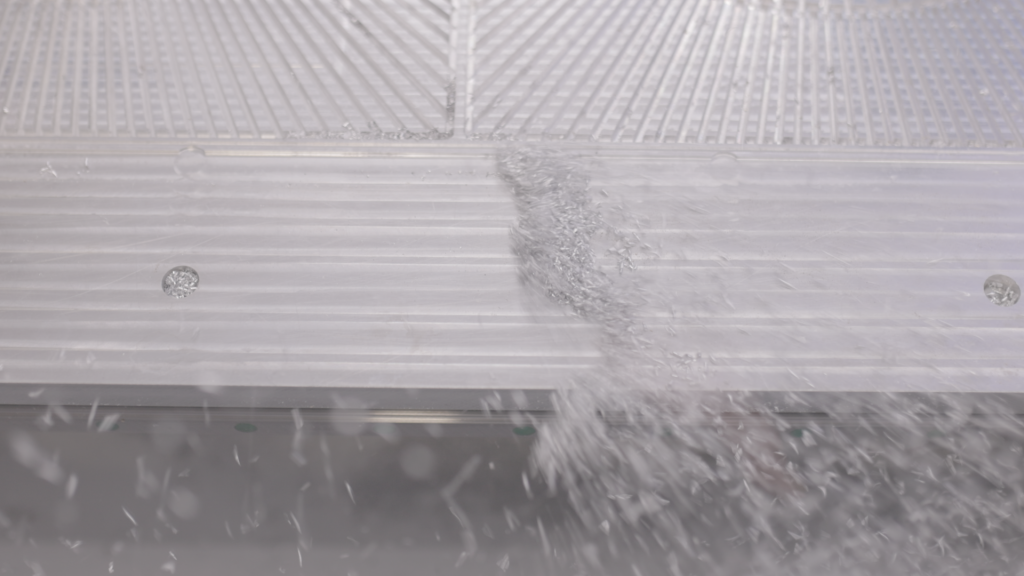

A dual system for handling milling waste ensures maximum cleanliness of the working area. A height-adjustable hood that can be connected to an external vacuum is installed on the electro-spindle of Axon V to effectively collect chips. A special system conveys machining residues into a dedicated container for easy disposal.
AXONV is a compact CNC milling machine for aluminum and plastics, designed to adapt to different production needs, from prototyping to serial production. Its configuration enables precise machining of materials such as aluminum, brass, engineering plastics, and composites.
Thanks to its compact dimensions and large working area relative to its footprint, it represents an ideal solution for companies that require high performance and speed even in limited spaces.
Yes, AxonV is designed for machining aluminum with high precision, speed, stability, and finishing quality.
Yes, it is a CNC milling machine for plastics, ideal for engineering and composite materials, even in complex applications.
Thanks to its configuration, AxonV is an ideal solution for those looking for a compact CNC milling machine for aluminum and plastics, suitable for both prototyping and serial production.
