Vacuum table and CNC milling machines: how technology improves precision, speed, and machining quality

In CNC machining, vacuum table technology represents one of the most important solutions for ensuring precision, stability and speed in production processes. More and more companies are choosing CNC milling machines equipped with vacuum tables because this system allows the material to be held uniformly in place, improving machining quality and reducing machine setup times.

When machining panels, sheets or flat materials, the clamping system becomes a decisive factor. A vacuum table for CNC milling machines allows the material to be secured without using mechanical clamps or fixtures, leaving the working surface completely free and ensuring greater operational efficiency.

The Importance of the Vacuum Table

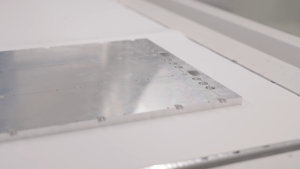

The vacuum table is a clamping system that uses the negative pressure generated by dedicated pumps to keep the material firmly in place on the milling machine’s worktable. When the workpiece is placed on the table and the vacuum system is activated, the air between the material and the machine surface is extracted. This process creates a pressure difference that pushes the workpiece towards the table, holding it firmly in place.

The CNC vacuum table allows the material to be secured quickly and uniformly without the use of traditional clamping systems. This keeps the work surface completely free and allows the machine to operate with greater precision.

Vacuum table and precision in CNC machining

One of the main advantages of vacuum tables for CNC milling machines is their ability to ensure high stability during machining. Unlike mechanical clamping systems, which concentrate the force on a few points, the vacuum table distributes the clamping force across the entire surface of the material.

Questa caratteristica riduce notevolmente vibrazioni e micro movimenti durante la fresatura. Quando il pezzo rimane perfettamente fermo, la macchina può mantenere tolleranze più precise e ottenere una qualità superficiale migliore. Per questo motivo il piano a vuoto CNC è diventato una soluzione fondamentale per le lavorazioni che richiedono alta precisione.

Faster machining thanks to the vacuum table

In addition to precision, the vacuum table offers a significant advantage in terms of operational speed. In traditional clamping systems, the operator must position clamps or fixtures, check clearances and ensure that they do not interfere with the toolpath.

Attraverso il piano a vuoto, il materiale può essere semplicemente posizionato sul piano e bloccato attivando il sistema di aspirazione. Questo riduce drasticamente i tempi di setup e consente di iniziare la lavorazione in pochi secondi, migliorando la produttività complessiva della macchina.

Obstacle-free machining with a vacuum table

Another major advantage of the vacuum table is the ability to machine the entire surface of the material without obstacles. The absence of clamps or fixtures allows the machine’s entire working area to be fully utilized and reduces the risk of tool collisions.

This feature is particularly important in nesting operations and in the full cutting of panels or sheets. Thanks to the vacuum table, the milling machine can perform more efficient machining operations and optimize material usage.

Vacuum tables in RM Technologies CNC milling machines

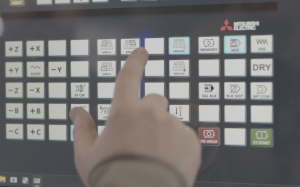

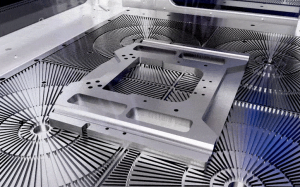

In the milling machines developed by Ronchini Milling Technologies, the vacuum table is designed to ensure maximum material stability and to support high-precision machining. The integration of a user-friendly numerical control, software that allows the activation and deactivation of vacuum across the working area, and worktables designed to optimize vacuum distribution enables Ronchini machines to maintain high performance even in the most complex applications.
